Custom 10-45mm Module Large Girth Gear pinion Ring For Grinding Mill

Ask Lasest Price
Brand Name :	ZTIC
Model Number :	Customized
Certification :	ISO/CE
Price :	negotiable
Payment Terms :	L/C, T/T, D/A, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	1-2 months

Add to Cart

Product Details
Company Profile

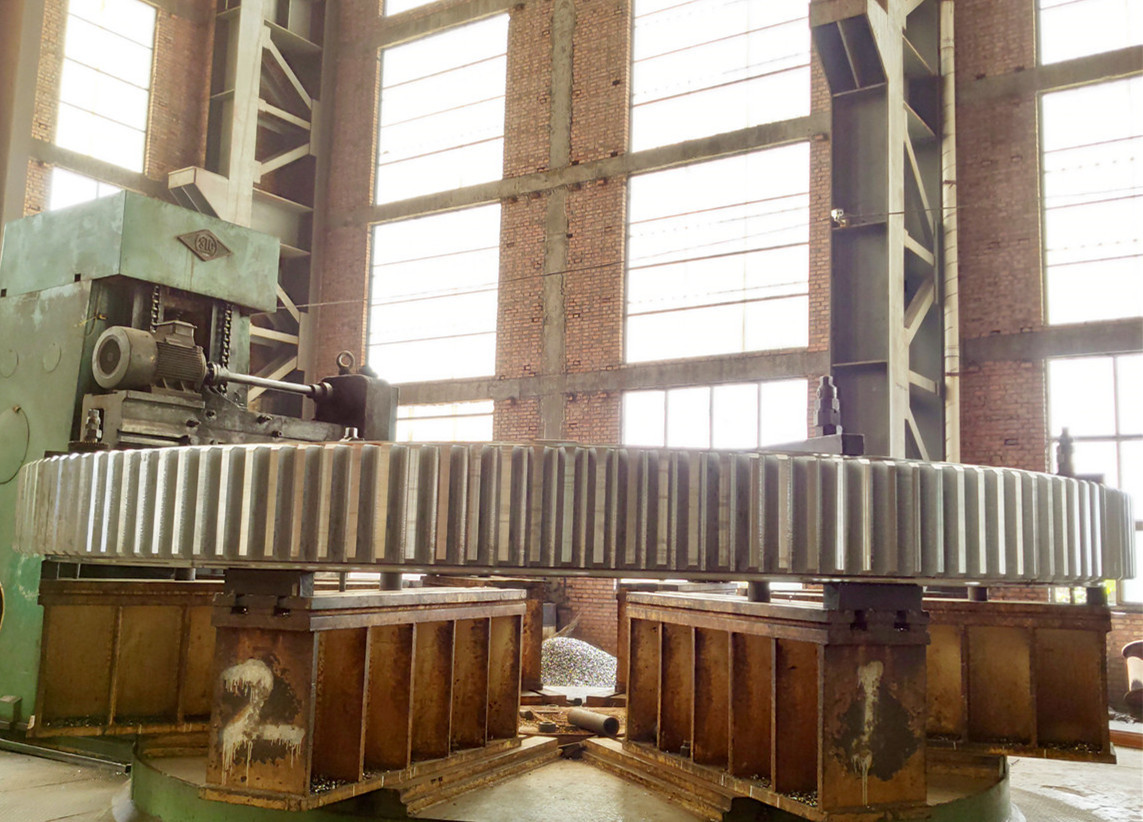

Custom 10-45mm Module Large Girth Gear pinion Ring For Grinding Mill

Custom 10-45mm Module Large Girth Gear pinion Ring For Grinding
Mill

1. Type:1,1.25,1.5,2,2.5,3,4,5,6,8,10,12,16,20,25,32,40,50.
2. Standard: DIN; GB, GOST, AISI, etc.
3. Certification: ISO9001, Form E, Form A, CO
4.Report: Material Report; Hardness Report; UT/MT Report; Dimensions checking
report; Mechanical Property Test Report
girth gear material
42CRMO STEEL DATA
CHEMICAL LIST
C : 0.38-0.45%
Si: 0.17-0.37%
Mn: 0.50-0.80%
S : Allow residual content <0.035%
P : Allow residual content <0.035%
Cr: 0.90-1.20%
Ni: Allow residual content <0.030% Cu: Allow residual content
<0.030%
Mo: 0.15-0.25%
MECHANICAL DATA
Tensile Strength σb (MPa): >1080(110)
Yield point σs (MPa): >930(95)
Elongation σ5 (%): >12
Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy
Akv(J): >63
Impact toughness value αkv (J/cm2): >78(8)
Hardness: <217HB
Sample size: The blank size of the sample is 25mm
PHYSICAL DATA
Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃,
Ms=310℃
Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃
/20 ~400℃/20~500℃ /20~600℃
linear expansivity:
11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K
Modulus of elasticity: temperature 20℃/300℃/400℃/500℃/600℃,
Elastic modulus 210000MPa/185000MPa/ 175000MPa/165000MPa/15500oMPa

Product Name	Gear
Classiffy	Spur Gear, Helical Gear , Herringbone Gear, Spiral Bevel Gear ,Bevel gear
Material	Medium Carbon Steel: 35#, 45# Carburizing Steel:20CrMnTi, 20CrMnMo Alloy Steel:40Cr, 35CrMo, 42CrMo, 40CrNiMo Cast Iron:HT250,QT400
Standard	DIN GB ISO JIS BA ANSI
Module	Hobbing up to 40 Gear Milling up to 50
Heat Treatment	Hardening&Tempering,Surface Quenching, Integral Quenching,Carburizing Quenching ,Tempering , Normalizing,Nitriding
Application	Be widely used in all kinds of transmission, speed changing, rotation and other civilian or military equipment.

The Technical Data Sheet Of straight tooth gear ring

Module	10-45mm
Dimension OD	OD:Φ100mm-Φ12000mm
Pressure Angle	20,30 and other Nonstandard
Accuracy	OD≤4000mm,6 class OD≥4000mm,8 class
Process	casting,forging,welding

Custom 10-45mm Module Large Girth Gear pinion Ring For Grinding Mill

item	description
normal materials	45 steel. 35simn steel
better materials	42crmo steel, 35crmo steel

company show

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.

Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS

ZTIC's Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
ZTIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
