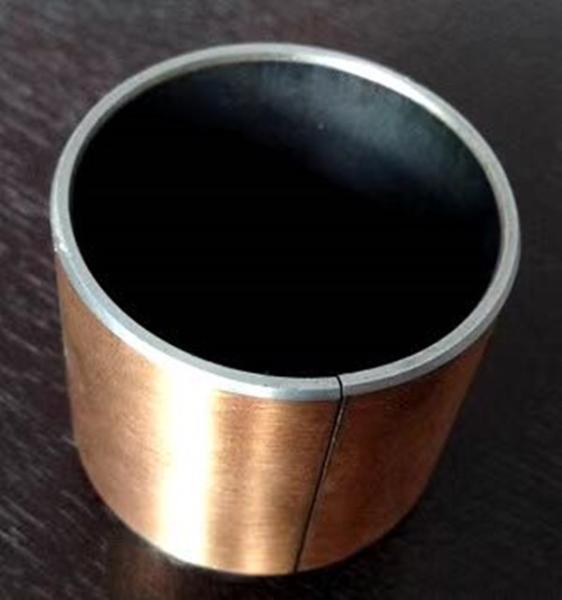

Cone Crusher Bushing Description:

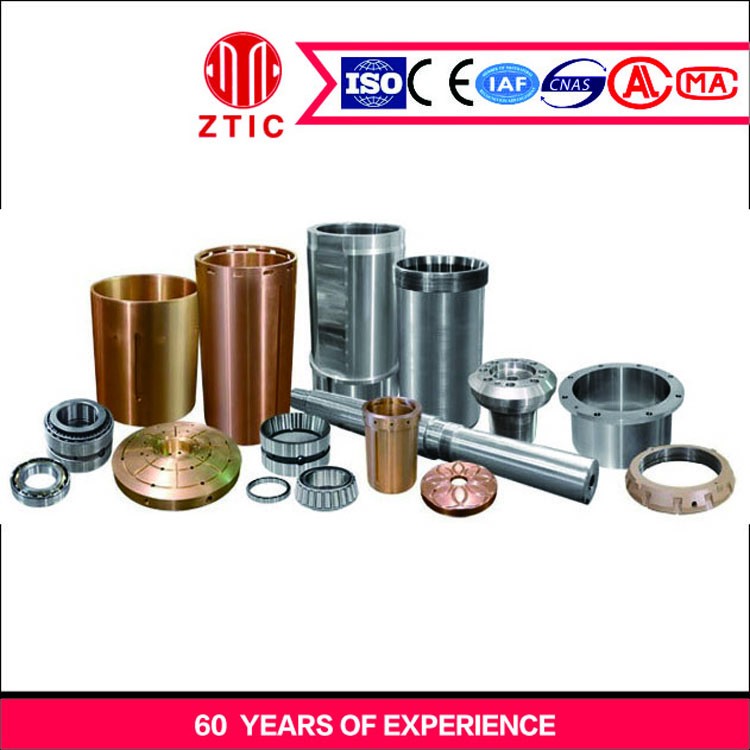

Except the mantle and concave, we can also supply most others spare
parts for the crusher, such as : Main frame assembly , main shaft
assembly, adjustment ring assembly, head assembly, bowl assembly,
movable jaw assembly, wear plate assembly, eccentric bushing,main
frame bushing, protection bushing, upper bushing, all kinds of seal
ring, wedges, we get these original parts from the same OEM
factory, that’s why we can promise the 100% original quality.
Cone Crusher Bushing Feature:
1. Precise dimension
2. Excellent surface finish and detail handling
3. High wear resistance and long working life
4. Low friction
5. Low moisture absorption
6. OEM available
Cone Crusher Bushing Features
1, High wear-resistant
2, Corrosion resistant
3, Excellent compression capaility
Cone Crusher Bushing Material grades:
1, Tin bronze series: 6-6-3 5-5-5 10-2 10-5 8-4
2, Phosphor bronze series: 10-1 6.5-0.1 7-0.2 8-0.3
3, Lead bronze series: 10-10 12-8 17-4-4 20-5 25-5 ZCuPb30
4, Silicon bronze series: ZCuSi3Mn1 ZCuSi1Mn3
5, Brass series: H62.H65.H68 59-1 58-2 16-4 40-2 58-2-2 66-6-3-2
| Product name | Inner eccentric bush |
Material
| Tin bronze (C83600/C93200/CuSn12/CuSn7Zn4Pb7); Copper Alloy; Lead Bronze; Aluminum Bronze (C62900/C95400/C95500/CuAl10Fe5Ni5) |
| Model | 2ft,3ft,4 1/4 ft,5 1/2 ft,7ft,Φ1300,Φ1600,Cs240 etc. Cone crusher complete cast copper parts |
| ID | 20-1000mm |
| OD | 25-1500mm |
| Standard | ASTM/ JIS/ ASME/ AISI/ EN/ BS |
| Production process | Sand casting,metal mold casing,centrifugal casting |
| Other accessories | Eccentric bush,socket liner,main shaft sleeve,frame bushing,thrust
bearing plate,driving shaft sleeve |

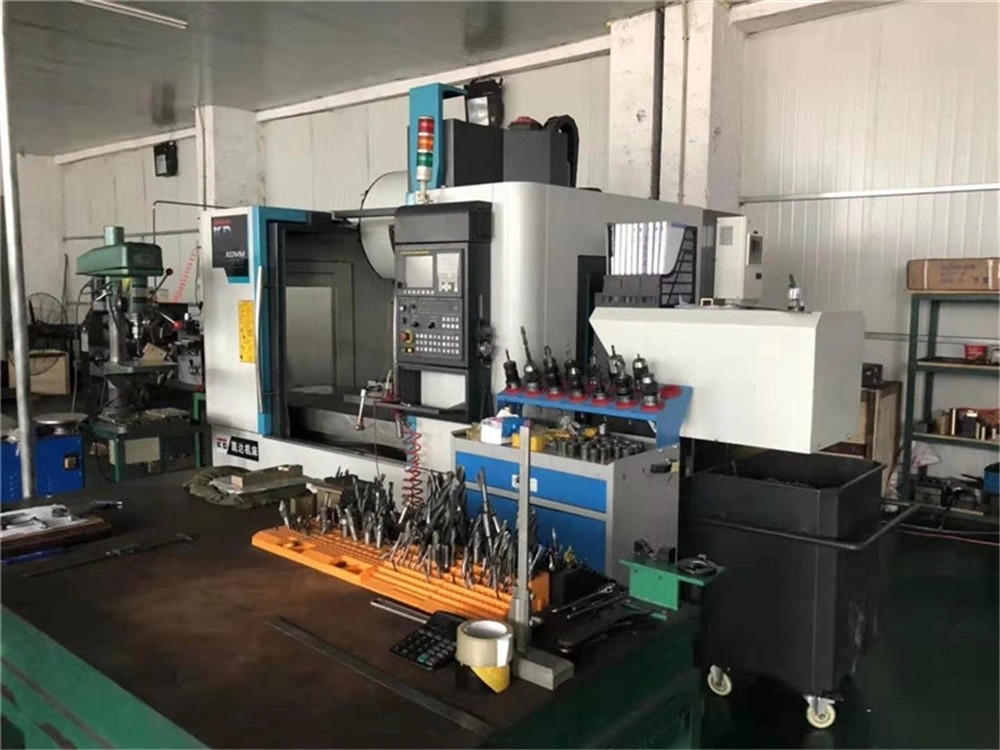

| Incoming Quality Control | All incoming raw material for CNC machining production are checked
and marked for receipt inspection before used. Varies measurements
are taken to check against approved data. Once rejected, raw
material are sent back for further examination. |
| Production Quality Control | We perform inspections during the CNC machining maufacturing
process. Frequency of inspection depends on the quality standard
set forth by the project. All manufacture datas are recorded for
future reference. |
| Final Quality Control | All finished CNC machined parts are inspected according to our
quality standard for each project. Products are sampled according
to the AQL sampling rate before they leave our production plant
into the warehouse. |
| Outgoing Quality Control | Our QC team will randomly check any finished goods in the warehouse
before it goes out for shipment. This last inspection ensure zero
defect goods are shipped to our customer. |
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery,
construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management
certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong
we will provide the technical advice and find solution immediately.
For those wearing parts we guarantee high quality parts for
long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and
parts maintenance if end user needs.
Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
