Decanter Centrifuge Ore Dressing Equipment Horizontal Screw Discharge

1. Basic introduction of decanter centrifuge

The decanter centrifuge is a new type of horizontal screw discharge centrifuge. Its working principle is to use the solid-liquid specific gravity difference, and rely on the centrifugal force field to expand it thousands of times. The solid phase is settled under the action of centrifugal force, thereby realizing The solid and liquid are separated and discharged from the body under the action of a special mechanism. The whole feeding and separation process is completed continuously, closed and automatically.

The suspension added to the drum forms an annular liquid layer under the action of centrifugal force, and the solid particles in it settle on the drum wall to form a sediment. The clear liquid is discharged through the overflow port of the drum or the suction pipe, which is called the separated liquid. At the end of the separation, the sediment is discharged manually or mechanically. During the process of settling to the drum wall, the solid particles also move axially with the liquid flow. When the feed amount is too large, they flow to the overflow port with the liquid, while the fine particles that have not settled on the drum wall are discharged with the separation liquid. Rotate the drum to make the separation liquid cloudy. For the difficult-to-separate suspension with small solid-liquid phase density difference, small solid particles or high liquid viscosity, a sedimentation centrifuge with a high separation factor should be selected to prolong the residence time of the suspension in the drum (for example, reducing the feed amount or using a long drum, etc.), to ensure that the separation liquid is clear. The decanter centrifuge has a wide range of uses, especially for the separation of suspensions in centrifugal filtration when the filtration resistance is too large or the fine particles are lost too much because the solid particles are easy to block the filter medium, but the moisture content of the sediment is high. The decanter centrifuge can be used for the separation of crystallization, chemical sediment, coal powder and other suspensions, the dehydration of various sewage sludge, and the slag removal and clarification of animal and vegetable oils.

2. Ore Dressing Equipment technical parameters

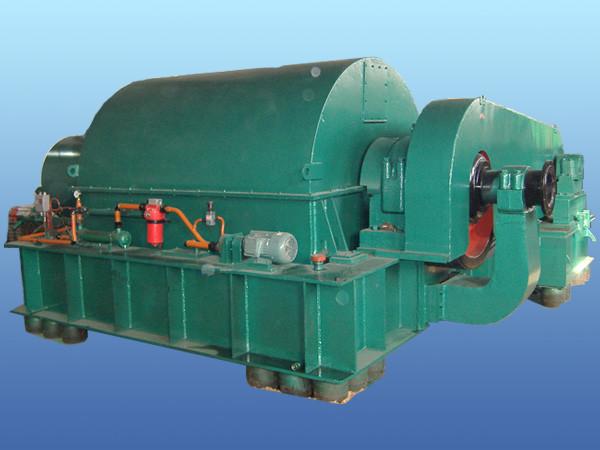

3. Ore Dressing Equipment photo explanation

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
